Barton* Chart Recorders
BARTON* chart recorders are renowned for the accurate, reliable measurement and recording of pressure, differential pressure (DP), and temperature. Their fully mechanical operation is independent of external utilities that facilitates a low installation cost or portability.

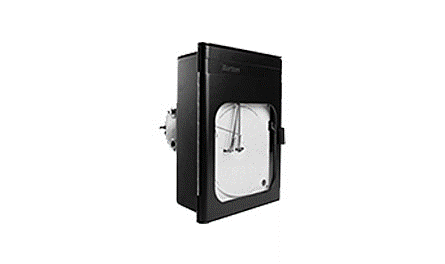

Barton* 202E & 242E Chart Recorders
Model 202E differential pressure chart recorder is a 12" chart recorder that is available in one-to-three pen configurations (DP plus two additional temperature or pressure pens) The DP pen is actuated by a BARTON* 199 DPU, with features such as over-range protection and pulsation dampening for stable calibrations even under extreme variations in line pressure and ambient temperature. Optional NACE material selections are offered. Model 242E The BARTON* 242E is a 12" chart temperature and pressure recorder offered in one- to four-pen configurations.
The standard temperature system in all Barton* Chart Recorders comprises of a factory sealed sensing system that uses a non-toxic fill fluid that converts temperature to mechanical motion. Each temperature recording pen includes a built-in correction for ambient temperature influences. The sensing system is offered in various lengths to support remote mounting of the recorder.
Specifications:
Differential Pressure:
0 to 10 inches of water (2.5 kPa) through 0-100 PSI (0.69 MPa) differential (higher ranges with model 224 DPU)
Safe working pressure: Up to 6000 PSI (41.3 MPa)
Optional alloys; Inconel bellows, Stainless steel bodies
Pressure Ranges:
0 to 25 PSI (0.17 MPa) through 0 to 30,000 PSI (207 MPa), may be calibrated as gauge or absolute pressure
Temperature Ranges:
0 to 500F (-18 to 260 C) in 5 ranges
Barton* J8A Chart Recorder
The Barton* Model J8A Temperature and Pressure Recorder is a versatile and rugged instrument designed for general temperature and pressure applications. It records monitored temperature and pressure on an 8-inch diameter chart. Up to four elements may be used in any combination to operate up to four individual recording pens. The standard temperature system in all Barton* Chart Recorders comprises of a factory sealed sensing system that uses a non-toxic fill fluid that converts temperature to mechanical motion. Each temperature recording pen includes a built-in correction for ambient temperature influences. The sensing system is offered in various lengths to support remote mounting of the recorder.
Specifications:
Differential Pressure:
0 to 10 inches of water (2.5 kPa) through 0-100 PSI (0.69 MPa) differential (higher ranges with model 224 DPU)
Safe working pressure: Up to 6000 PSI (41.3 MPa)
Optional alloys; Inconel bellows,Stainless steel bodies
Pressure Ranges:
0 to 25 PSI (0.17 MPa) through 0 to 30,000 PSI (207 MPa), may be calibrated as gauge or absolute pressure
Temperature Ranges:
0 to 500F (-18 to 260 C) in 5 ranges
* Mark of Sensia
